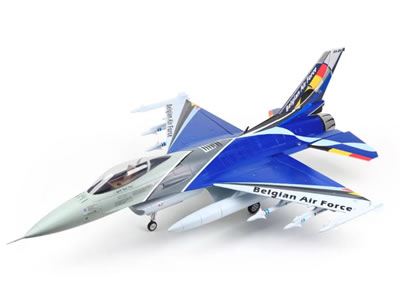

HSD F-16 105mm Jet Kit Belgian Air Force RC Jet
1.It is require 4270-750KV brushless motors System and 160A 12S ESC
2.it requires 6 Channel 2.4 GHz Radio,6 Channel 2.4 GHz Receiver
3.it requires 2x 2 Cell 7.4V 1800-2000mAh Li-Po Battery with XT60 or T type plug and 2x 6 Cell 22.2V 4000mAh-5000mAh Li-Po Battery with AS150 type plug

This Products is available in stock.
This Products is available in stock.
This Products is available in stock.
we will ship the package within 48 hours after the buyers pay momey by paypal
it is made in China HSD JET ,100% original,
HSD has leaped ahead in the industry with the 105mm F-16, a model worthy of being the best in its class. Its massive high-performance 105mm 11-blade EDF creates an unrivaled turbine-like swoosh that echoes through the skies.
It is professionally designed to balance a simple assembly, scale appearance, quality and high performance. This inspiring model will leave you looking for more after every single flight. It features a complete lighting package with several LEDs, like the nose taxi-light and after-burner simulation ring.
Specifications
- Solid EPO foam matte paint
- Carbon fiber reinforced airframe
- Powerfull propulsion system EDF105mm with a thrust of 7.4kg with a 118A
- Precise steering function
- All-metal landing gear system with shock absorption
- Exclusive MFC-2085 control system which reduces complex wiring
- 2.0 upgraded version of electromagnetic brake system
- Bright LEDs entire system for landing, navigation
- Throttle controlled high-scale after-burner
- Very easy and fast assembly with wing connections
- 3D foam packaging design for the best protection of the model
Technical specifications
- Wingspan: 1245mm / 49in
- Length: 1809mm / 71.2in
- Wing load: 129.8 g/dm2
- Wing area: 47 dm2
- Flying weight: 6.1kg (13.4 lb) w/ 12s
- EDF: S-EDF 105mm 11 blades
- Motor: 4270/750KV brushless
- ECS: 160A/12S Hobbywing AS150
- Servos : 4x25g metal with lead and 8x12g metal with lead
- Radio: 6 channels
- Recommended MFC-2085 battery: 2x Li-Po 2S (7.4V) 1800 to 2000mAh Lipo Batery
- Recommended EDF battery: 2x Li-Po 6S (22.2V) 5000 to 6000mAh Lipo Battery
- Ailerons: Yes
- Elevator: Yes
- Rudder: Yes
- Flaps: No
- Landing Gear: metal electric retractable hydraulic
- LED lights system: Yes
- Electromagnetic brake system: Yes
- Reinforced gyro: Selective configuration (not included)
- Approximate flying time: about 3-5 mins
- Cruising speed: about 180 km/h
- Mounting time: between 30 minutes to 1 hour
Includes
- 1x HSD F-16 105mm Jet (Belgian Air Force)
- Kit version(landing Gear was pre-instaled), it is without 4270-750KV brushless motors System and 160A 12S ESC
Requires
- 4270-750KV brushless motors System and 160A 12S ESC
- 6+ Channel 2.4 GHz Full Range Radio
- 6+ Channel 2.4 GHz Full Range Receiver
- 2x 2 Cell 7.4V 1800-2000mAh Li-Po Battery with XT60 or T type plug
- 2x 6 Cell 22.2V 4000mAh-5000mAh Li-Po Battery with AS150 type plug
- 2-6 Cell Li-Po Battery Charger
| Type of kit: | Kit |
| Wingspan (mm): | 1245mm / 49in |
| Length (mm): | 1809mm / 71.2in |
| Flying weight (gr) | 6100g (13.4 lb) (approx) |
| Wing Surface Area: | 47 dm2 |
| Wing Loading: | 129.8 g/dm2 |
| CG (Center of Gravity) | Check manual |
| Servos | 25g X 4pcs metal, 12g X 8pcs metal |
| EDF Diameter Class (mm): | 105 |
| Blades: | 11 |
| Turbine shroud | Synthetic |
| EDF Rotor | Synthetic |
| Power System | 4270-750KV Brushless EDF |
| Turns/min/Volt (Kv): | 750 |
| Electronic Speed Control | 160A/12S Hobbywing AS150 |
| Battery Cells: | 12s - 44.4v |
| Battery Capacity (mAh) | 6.000 mAh |
| Connection: | AS150 |
| Surfaces | Rudder |
| Landing Gear | With brakes |
| Lights | "Afterburner" LED ring |
| Material | EPO Foam |
| Build time | 1 hour |
| Required Radio | 6 channels minimum |
| Recommended pilot skill level | Advanced |
